Industrial Air Contractor

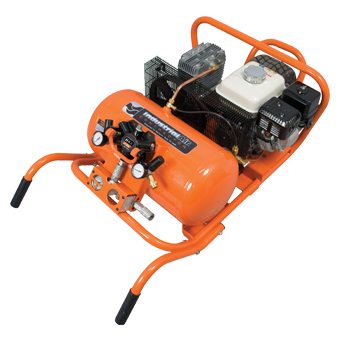

10 GALLON CHOPPER WHEELBARROW AIR COMPRESSOR

Model # : CWA5591016.4 / CWA5591016.5

10 Gallon - Model No. CWA5591016.4/CWA5591016.5

FEATURES

  • Long lasting twin cylinder pump combines aluminum pump body with cast iron cylinders
  • Runs cooler-Dissipates heat faster-Lasts longer
  • Extra large center tire
  • For unparalleled maneuverability
  • Pump / Motor positioned to put more weight on the tire less on the handles
  • Oil filled tank pressure gauge for accuracy
  • Includes one 1/2" unregulated quick connect, two 1/4" high flow regulated quick connects and H4X Remote Air Hub.


**Model #CWA5591016.5 includes H4X Hub and 50' Air Hose

SPECIFICATIONS

  • TANK SIZE : 10 Gallons
  • POWER SUPPLY : Gas - Honda® GX160 OHV
  • CC : 163
  • MAX PSI : 155
  • SCFM @ 90 PSI : 9.9
  • PUMP : Oil Lube
  • DRIVE : Belt
  • SHIPPING DIMENSIONS (INS) : 55 L x 30 W x 19 H
  • PRODUCT WEIGHT : 187 lbs.
  • SHIPPING WEIGHT : 203 lbs.
  • WARRANTY : 2 Years

USER MANUAL / PARTS LIST

PDF-Icon USER MANUAL & PARTS LIST



PRODUCT VIDEOS

H4X REMOTE AIR HUB™ VIDEO
CHOPPER - 10 GALLON VIDEO
